DEMMELER clamping pins for all applications!
Demmeler clamping pins are universal products, consistently suited for all welding table systems. They add strength and safety to the entire system. Different versions are offered to optimise their use for a wide variety of applications. Regardless of the concrete application, high stability is therefore assured with low fixation effort, even in light to moderate steel, sheet metal or plant construction.
Bolts
-
PPC-bolt, short
Highest clamping force with large stroke. Polygon expansion elements are full-faced, force-locked, and exactly self-centring
Price on requestplus VAT
-
PPC-bolt, long
Highest clamping force with large stroke. Polygon expansion elements are full-faced, force-locked, and exactly self-centring
Price on requestplus VAT
-
PPC-countersunk bolt, short
Easy, comfortable clamping through optimised force distribution in the polygon expansion segments, ideal for DEMMELER power screwdriver
Price on requestplus VAT
-
PPC-countersunk bolt, long
Easy, comfortable clamping through optimised force distribution in the polygon expansion segments, ideal for DEMMELER power screwdriver
Price on requestplus VAT
-
Price on requestplus VAT
-
PC-bolt, short
Very high clamping force due to planetary gear effect, force-fit and form-fitting, with clamping range
Price on requestplus VAT
-
PC-bolt, long
Very high clamping force due to planetary gear effect, force-fit and form-fitting, with clamping range
Price on requestplus VAT
-
Price on requestplus VAT
-
Price on requestplus VAT
-
FCP-bolts with handle
Defined adjustment position and optimum implementation to ensure constant maximum clamping force
Price on requestplus VAT
-
Stop and positioning bolts
For marking the system components, also as adapter for system 16 screw clamps
Price on requestplus VAT
-
Price on requestplus VAT
-
Price on requestplus VAT
-
Connection bolt, short with screw
For use as long-term connection, with self-centring countersunk head on both sides
Price on requestplus VAT
-
Connection bolt long, with screw
For use as long-term connection, with self-centring countersunk head on both sides
Price on requestplus VAT
-
Connecting bolt, short with collar
For use as long-term connection, for connecting two system components
Price on requestplus VAT
-
Price on requestplus VAT
The PPC bolt meets all expectations!
Self-centring, force-locked and low-wear clamping – possible thanks to the original DEMMELER clamping bolt
- Very high-speed clamping and unclamping of the clamping elements
- Form-fitting through full-area contact with the reciprocal surface
- Reduces material wear even when aluminium and plastic elements are used – no system bore deformation
- Low susceptibility to dirt because sensitive parts such as clamp threads etc. are fully encapsulated by O-rings
- Extremely robust made from high-quality hardened steel, maximum precision thanks to grinding
- Long service life guaranteed in everyday applications
Comparison between clamping pins
and the new polygon bolt from DEMMELER
Cone instead of balls – more force, less wear. Thanks to the new cone clamping system of the Demmeler PPC bolt, the bearing surface is 100 times larger. This results in much higher contact pressure, therefore securing work pieces more reliably. Even force distribution also reduces bore hole wear compared to conventional bolts.
Clamping pin versions
PPC-BOLT
The best pin there is! Surface load instead of point load for more strength and less wear. Even force distribution is achieved thanks to the patented cone clamping system.
PC-BOLT
The PC-bolt is the ideal connecting element between all system components. Even clamping is assured by the clamping balls.
ECO-BOLT
The eco-bolt is a simple version without clamping range. Ideal for clamping system components on welding tables or for connecting multiple system components.
Clamping pin head versions
KNURLED PIN HEAD
Ergonomic, knurled pin head for fast one-hand operation!

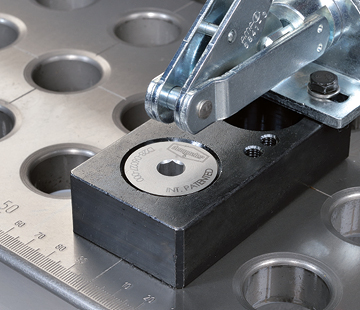

COUNTERSUNK HEAD
The countersunk head is fully recessed in the bore hole.

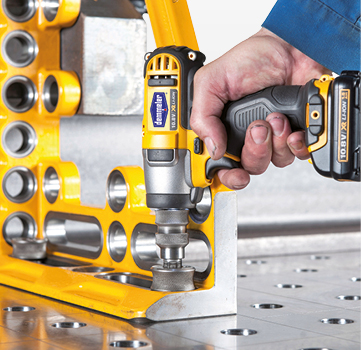

Power screwdriver with quick-change coupling for the new PPC bolt!
10 x faster than conventional! Designed especially for use with the new PPC bolt:
- Thanks to DEMMELER system locking between the PPC bolt and impact screwdriver, inserting and tightening as well as loosening and pulling the bolt is possible with just one hand. This always keeps your other hand free
- Minimum expenditure of energy for maximum clamping force

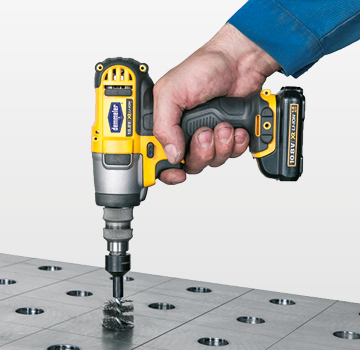

- Straightforward, efficient care of the table thanks to included cleaning plate and round brush attachment
- Clamping with maximum force and speed
