Robotix® IP: When you have something big in mind
Lift and turn workpieces up to 40,000 kg

When you have big ambitions, you need machinery to match. With the Robotix IP manipulator, you can position your workpieces flexibly, manufacture efficiently and work ergonomically. In a relaxed posture, a welding seam can be welded far more precisely. Optimum positioning of the workpiece also achieves an ideal production process: No flowing of the welding material. We can offer you the right product among numerous solutions.

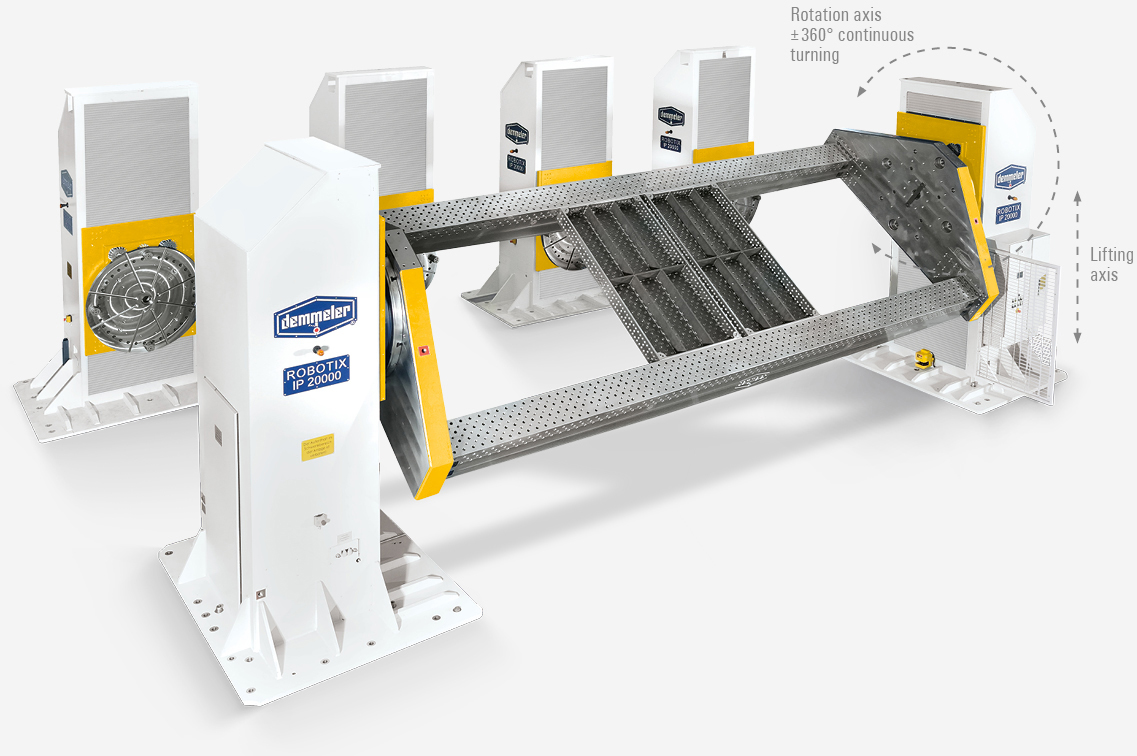

Basic model of the Robotix IP


Description IP 20000 IP 40000
Bearing load (w/o worktop) [kg] 20000 40000
Lifting axis:
Drive servohydraulic servohydraulic
Lifting speed [m/min] 1,5 1
Max. lifting height [mm] 2200 2450
Minimum height [mm] 1050 1050
Maximum height [mm] 3250 3500
Rotary axis 1/tilt axis:
Min./max. speed [rpm] 0,2 – 1,0 0,2 – 1,0
Angle of rotation [°] ± 360 continuous turning ± 360 continuous turning
Torque [Nm] 24000 50000
Controller at control cabinet yes yes
Item no. I20-01000-100 I40-01000-100

Specifications without worktop. Other equipment details available on request.
