DEMMELER 3D WELDING TABLES – THE OPTIMUM SOLUTION FOR MANY TASKS!

The universal 3D welding table meets all requirements for horizontal as well as vertical applications. With this modular system, setting up your parts exactly and quickly is a snap: Machine housings, racks, frames, cross members, mounting brackets, railings, stairs, gates, control cabinets, sheet metal coverings and much more.
Elaborate and costly conventional fixtures are a thing of the past. With this system, you can set and fix the specified sizes for any work piece quickly and precisely. Your individual welded components are clamped at the corresponding faces or points during the tacking and welding process for optimum positioning.

3D worktables

THE OPTIMUM 3D WELDING TABLE FOR EVERY APPLICATION

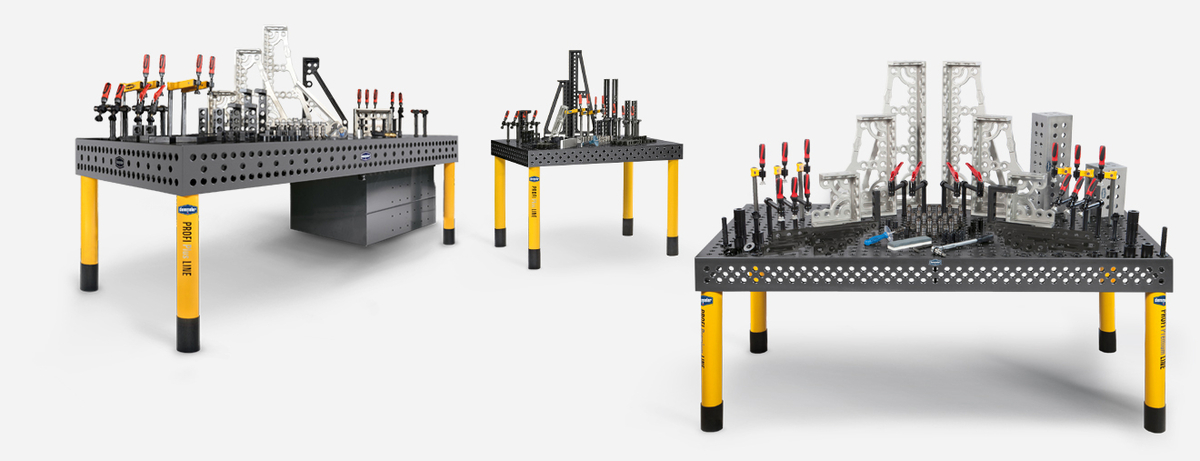

THE INTELLIGENT SYSTEM GRIDS INCREASE PRODUCTIVITY

D28 / For everyday, large welded constructions

  • Grid 50 x 50 mm
  • 3-hole drilling pattern in the table side plates, 50 mm grid in the top and bottom rows with additional 100 mm grid in the middle
  • Diagonal grid 100 × 100 mm
  • 3-hole drilling pattern in the table side plates, 50 mm grid in the top and bottom rows with additional 100 mm grid in the middle
  • Grid 100 x 100 mm
  • 3-hole drilling pattern in the table side plates, 50 mm grid in the top row with additional 100 mm grid in the middle and bottom rows
  • Grid 100 x 100 mm
  • Worktop approx. 25 mm high
    with system bores
    in a 100 mm x 100 mm grid

D22 / For light and medium-duty applications

  • Grid 50 x 50 mm
  • 3-row bore pattern on the table side plates, 50 x 50 mm diagonal grid
  • Diagonal grid 100 × 100 mm
  • 2-row bore pattern on the table side plates, 50 mm grid

D16 / For delicate applications

  • Diagonal grid 50 × 50 mm
  • 3-row bore pattern on the table side plates, 50 mm grid in the top, middle and bottom row
  • Grid 50 x 50 mm
  • 3-row bore pattern on the table side plates, 50 mm grid in the top, middle and bottom row

BENEFITS OF THE DEMMELER WELDING TABLES

With our 3D clamping system, you have the right solution for clamping and positioning work pieces near at hand. Optimum positioning of the work piece not only makes work more accurate but also much more effective. In particular, the intelligent system grids give you unlimited clamping capabilities.

Precision scaling

Axis designation in x and y-direction. Standard version includes precision scaling.

Protective countersinks

Innovative protective countersinks: Optimum bolt and clamp insertion with simultaneous protection of the tabletop against damage from materials, even in case of extreme strain on the system bore or when used with aluminium.

Max. load

All our welding tables are generously sized, super sturdy and optimised with FEM calculations on principle.

DEMONT 860 M

The combination of a high-strength base material and special hardening process makes it possible to achieve the best possible worktable properties for extreme strain.

Leg with sleeve

Foot sleeve prevents pinching the welding hose and protects the threaded spindle against dirt.

Additional bores

Axis designation in x and y-direction. Standard version includes precision scaling.

THE HARDNESS OF DEMMELER – FOR THE TOUGHEST REQUIREMENTS

  • Less wear
  • Protection against adherence of weld spatte
  • Extremely tough and durable
  • Optimum surface qualities

DEMONT 860 M

Using a high-alloy base material for the worktop in combination with the special, optimised Demmelerhardening process results in the best possible material characteristics. A hardness of up to 860 Vickers can be achieved. The combination of a high-alloy base material and special hardening process makes it possible to achieve the best possible worktable properties for extreme demands.

DEMONT 760 M

Stands for the combination of the specified base material and the new Demmeler hardening process optimised especially for worktables. This results in outstanding material characteristics. A hardness of up to 760 Vickers can be achieved, reducing wear for an even longer service life of your worktable.

THE RIGHT LEG FOR ANY APPLICATION

Foot sleeve prevents pinching the welding hose and protects the threaded spindle against dirt.

Pivoting foot with sturdy M30x2 (system D28) or M24x2 (system D16) threaded spindle, adjustment travel 30 mm fine adjustable.

Or you can choose the desired leg version:
