The right foot for every purpose

Efficient work is guaranteed! From the fine-adjustable standard foot to the mobile heavy-duty foot to the continuously variable scissor lift for components weighing up to 6 tons, a variety of table feet is available for the different table systems to meet the needs of every application. This ensures you have the greatest possible freedom in production.

Thanks to their intelligent design, the sturdy attachment of the feet is straightforward. The robust version ensures a long life. Foot sleeve prevents pinching the welding hose and protects the threaded spindle against dirt.

Table legs

System:

Standard leg

Pivoting feet ± 30 mm fine adjustable, foot sleeve protects threaded spindle against dirt

Price on request
plus VAT
Telescoping leg

For flexible height adjustment of the welding table, adjustment range 350 mm in 50-mm increments

Price on request
plus VAT
Heavy-duty wheel

Robust version, with 360° caster, max. load capacity 600 kg, wheel with and without brake

Price on request
plus VAT
Anchoring leg

For firm attachment to the hall floor against tension, pressure and shifting (e.g. robot use)

Price on request
plus VAT
Scissor lift

Continuously variable height adjustment, ith safety shutdown board, including hand control

Price on request
plus VAT
Leg for spacer block

Connecting elements between spacer block U-form or 3D worktable and support and base rail

Price on request
plus VAT
Shifting foot

Moving installed system components without using hoisting equipment or a crane

Price on request
plus VAT
Holding frame

In combination with pivoting leg or in lengthwise and crosswise direction on the support and foundation track

Price on request
plus VAT

Table legs for your welding table

Standard leg

Pivoting feet, ± 30 mm fine adjustable
Sturdy M30 threaded spindle
Foot sleeve protects the threaded spindle against dirt and prevents pinching the cable-hose assembly
Also suitable as supporting leg in combination with overhung spacer block U-form, length 1 m and up
Including countersunk M24 x 60 mounting screw
Leg tube powder coated

Telescoping leg

Pivoting feet, ± 30 mm fine adjustable
Sturdy M30 threaded spindle
Foot sleeve protects the threaded spindle against dirt and prevents pinching the cable-hose assembly
Telescope adjustment range 350 mm in 50-mm increments
For flexible height adjustment of the worktable
Including countersunk M24 x 60 mounting screw
Leg tube powder coated

Heavy-duty wheel

Fine adjustable ± 30 mm
Sturdy M30 threaded spindle
Foot sleeve protects the threaded spindle against dirt and prevents pinching the cable-hose assembly
Robust version
With 360° caster
Max. load capacity 600 kg
Including countersunk M24 x 60 mounting screw
Leg tube powder coated

Anchoring leg

Fine adjustable ± 30 mm
Sturdy M30 threaded spindle
Foot sleeve protects the threaded spindle against dirt and prevents pinching the cable-hose assembly
For firm attachment to the hall floor against tension, pressure and shifting (e.g. robot use)
Includes M24 x 60 countersunk mounting screw and, for firm anchoring to the floor, 2 x drop-in anchor, 2 x cap screw M16 x 40
Leg tube powder coated

Connecting elements for a larger surface area and more space

Scissor lift

Continuously variable height adjustment
With safety shutdown board
Fully adapted to 3D worktable D28
Including hand control
Power unit internal / external (depending on size)

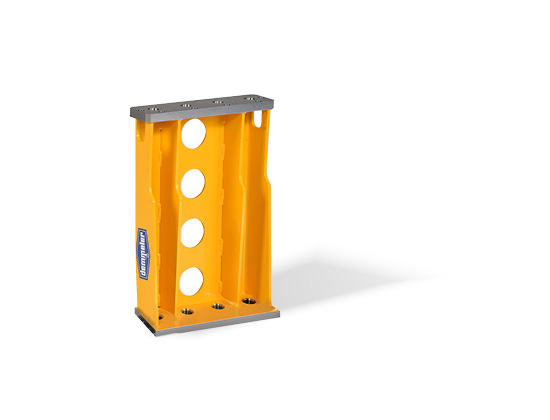

Table leg for spacer block

Connecting elements between spacer block U-form or 3D worktable and support and base rail
Different setup heights can be adapted to the work piece by simply exchanging the table legs

Shifting foot with casters

Moving installed system components is possible without using hoisting equipment or a crane
Different setup heights can be adapted to the work piece by simply exchanging the table legs
Highest load capacity in the working position thanks to full surface support of the foot on the rail

Holding frame

Exact positioning of 3D worktables is possible using pivoting leg or in lengthwise and crosswise direction on the support and foundation track
Very stable version for extremely high loads

Both horizontally and vertically –
clamp large components precisely and securely

Flexibly moving system components horizontally on the rail system

The versatility of the rail system allows you to flexibly extend or divide your workspaces, offering crucial advantages for varying component sizes or different work steps. The combination of 3D welding tables, spacer blocks and accessories results in countless clamping options. The patented DEMMELER^® sliding legs with castors are easy to move on the DEMMELER^® support and base rails and can be positioned with precision.

DEMMELER^® sliding legs with castors make it possible to easily move set-up system components on the DEMMELER^® rail system.

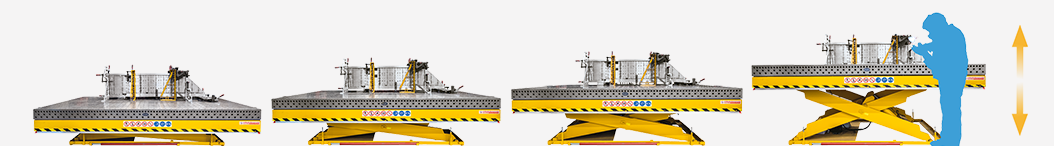

Scissor lifts for ergonomic work at the ideal height

In addition to various table legs, we also offer solutions for especially heavy components. Our scissor lift allows you to adjust the height of the welding and clamping table quickly and continuously. This enables every welding and assembly workstation to be lifted or lowered to the ideal height, individually adapting to different clamping situations.

Scissor lift with continuously variable height adjustment. Available in the standard table sizes.
