PROFIPlusLINE Set 730 (System 22)

  • PROFIPlusLINE Set 730 (System 22)
  • PROFIPlusLINE Set 730 (System 22)
  • PROFIPlusLINE Set 730 (System 22)
  • PROFIPlusLINE Set 730 (System 22)
  • PROFIPlusLINE Set 730 (System 22)
  • PROFIPlusLINE Set 730 (System 22)
  • PROFIPlusLINE Set 730 (System 22)
  • PROFIPlusLINE Set 730 (System 22)
  • PROFIPlusLINE Set 730 (System 22)
  • PROFIPlusLINE Set 730 (System 22)
  • PROFIPlusLINE Set 730 (System 22)
  • PROFIPlusLINE Set 730 (System 22)
  • PROFIPlusLINE Set 730 (System 22)
  • PROFIPlusLINE Set 730 (System 22)
  • PROFIPlusLINE Set 730 (System 22)
  • PROFIPlusLINE Set 730 (System 22)
  • PROFIPlusLINE Set 730 (System 22)
  • PROFIPlusLINE Set 730 (System 22)
  • PROFIPlusLINE Set 730 (System 22)
  • PROFIPlusLINE Set 730 (System 22)
  • PROFIPlusLINE Set 730 (System 22)
  • PROFIPlusLINE Set 730 (System 22)
  • PROFIPlusLINE Set 730 (System 22)
  • PROFIPlusLINE Set 730 (System 22)
  • PROFIPlusLINE Set 730 (System 22)
  • PROFIPlusLINE Set 730 (System 22)
  • PROFIPlusLINE Set 730 (System 22)
  • PROFIPlusLINE Set 730 (System 22)
  • PROFIPlusLINE Set 730 (System 22)
  • PROFIPlusLINE Set 730 (System 22)
  • PROFIPlusLINE Set 730 (System 22)
  • PROFIPlusLINE Set 730 (System 22)
  • PROFIPlusLINE Set 730 (System 22)
  • PROFIPlusLINE Set 730 (System 22)
  • PROFIPlusLINE Set 730 (System 22)
  • PROFIPlusLINE Set 730 (System 22)
  • PROFIPlusLINE Set 730 (System 22)
  • PROFIPlusLINE Set 730 (System 22)
  • PROFIPlusLINE Set 730 (System 22)
  • PROFIPlusLINE Set 730 (System 22)
price on request

plus VAT

Amount:

Item number: D22-52000-730

Product description

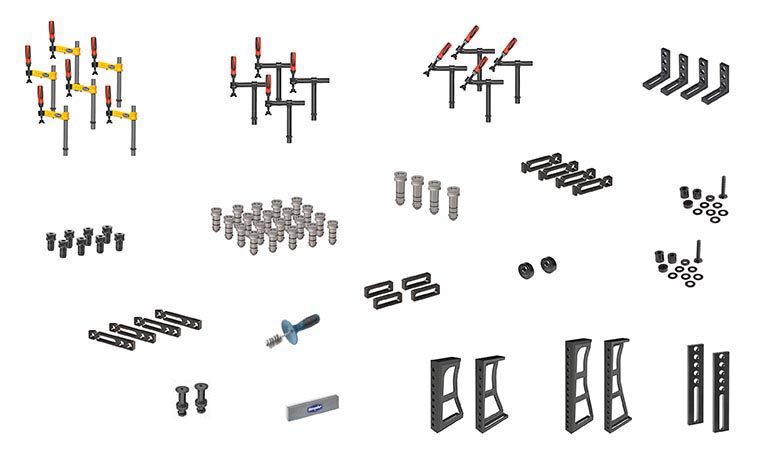

Parts 77

Quantity

Article no.

Article designation

4

D22-06026-000

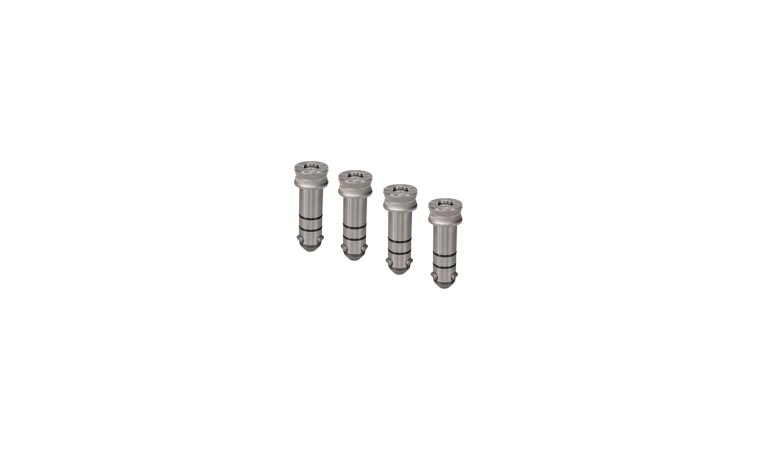

PPC bolt/long Ø 22, AF 6

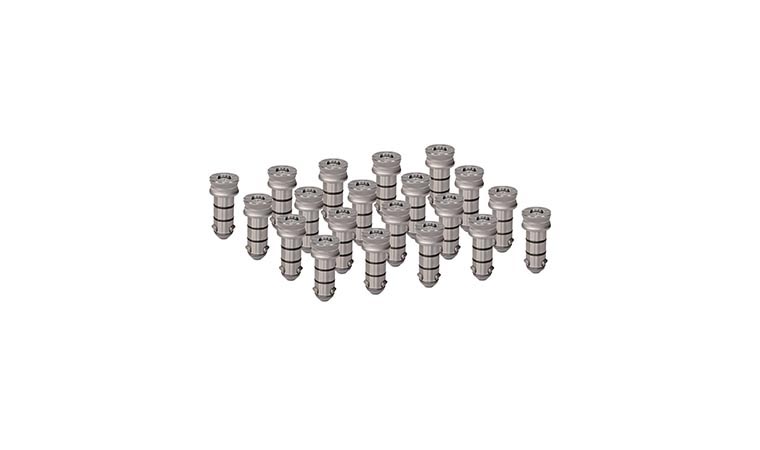

20

E22-06025-000

EcoLINE bolt/short Ø 22, AF 6,clamping range 32 - 33.5 mm

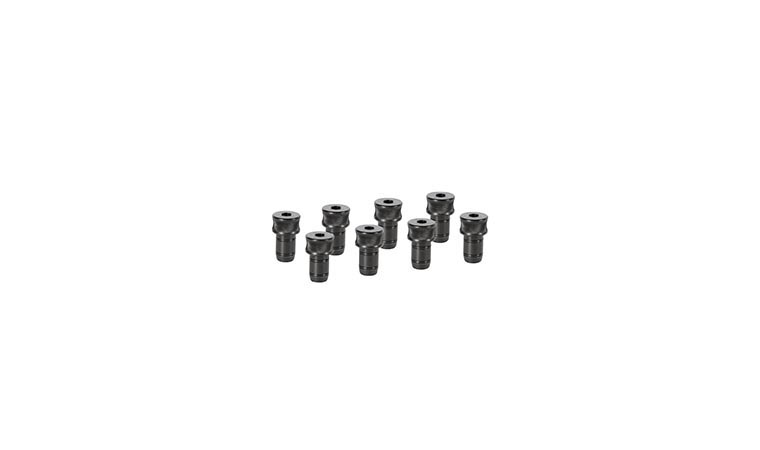

8

D22-06009-000

Stop and positioning boltsØ 22 / 31 × 52 mm

2

D22-09001-005

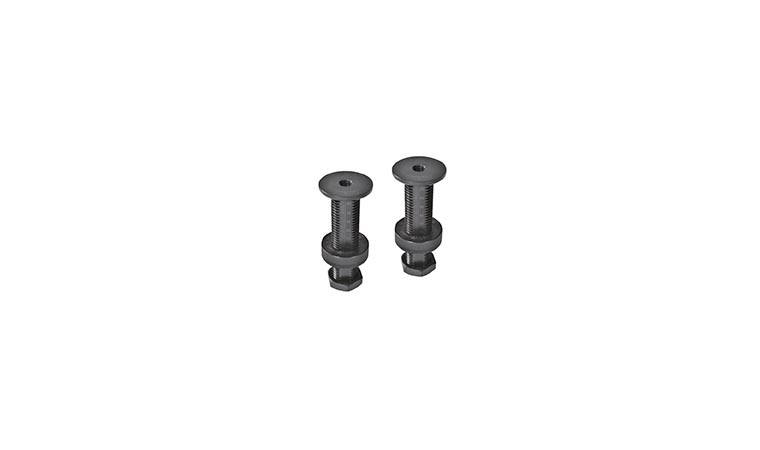

Spacer set with thread Ø 50 × 125 mm,height compensation 22 - 105 mm, continuous

2

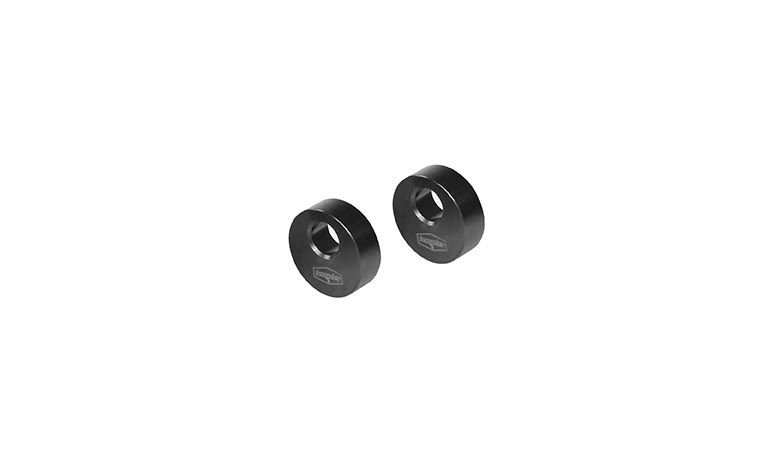

D22-05013-000

Locating disk Ø 75 stop dimension 25-50 mm, continuous

2

D22-09001-000

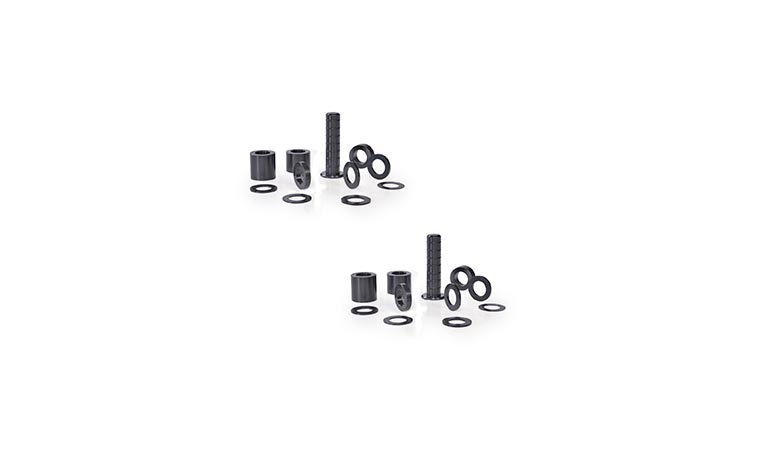

Spacer set 11 pieces Ø 50 × 125 mm, height compensation 5-100 mm,increment 1 mm

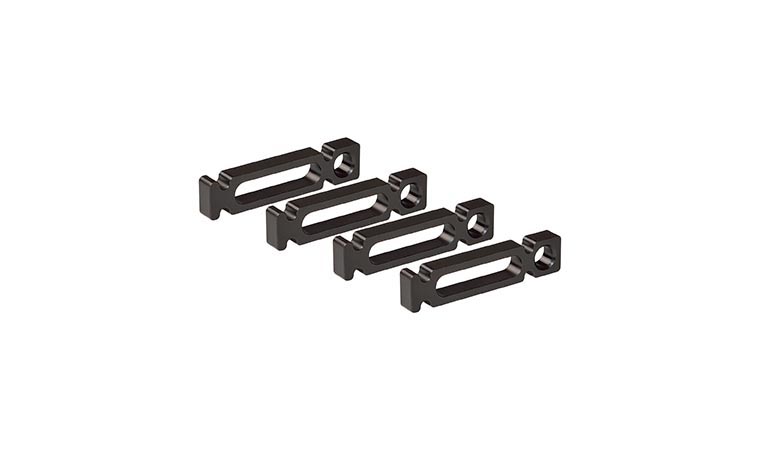

4

D22-05015-000

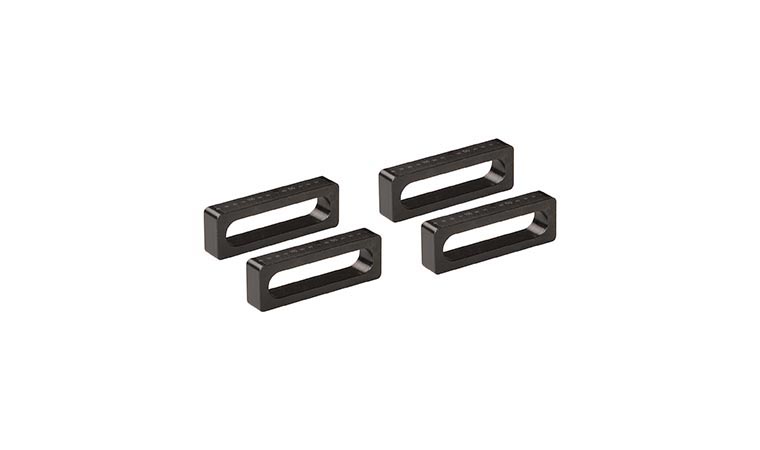

Displacement stop 100 × 50 × 18 mm, scale on both sides

4

D22-05001-000

Universal stop size 225 × 50 × 18 mm

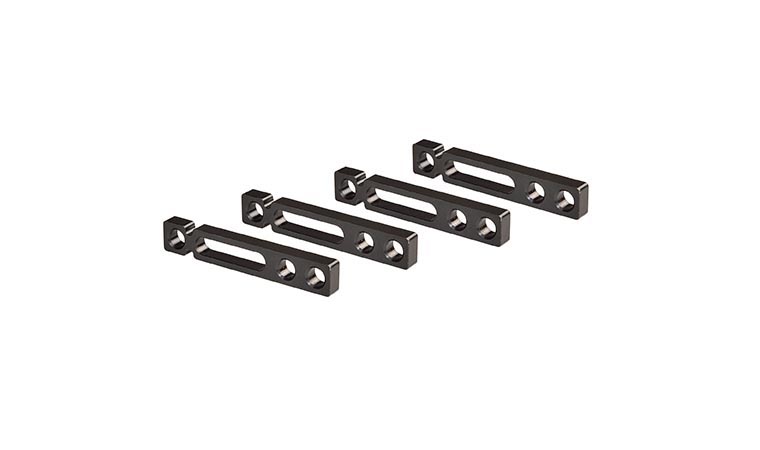

4

PE22-03001-000

Clamping and locating angle175 × 175 mm bore/oblong hole

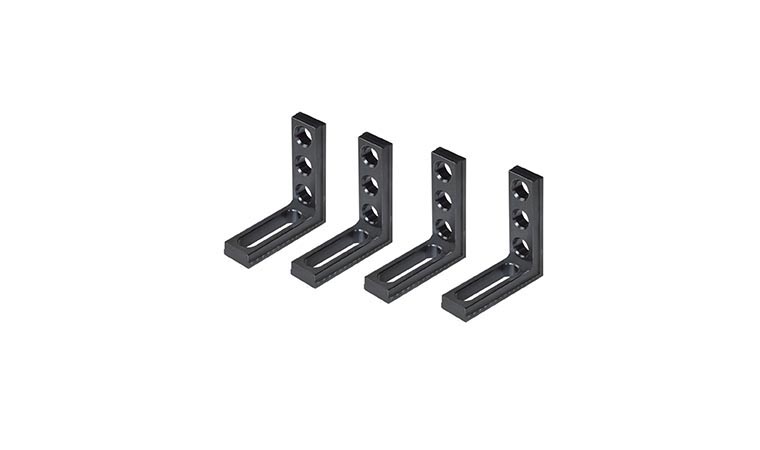

4

D22-05009-000

Universal stop L 300300 × 50 × 18 mm

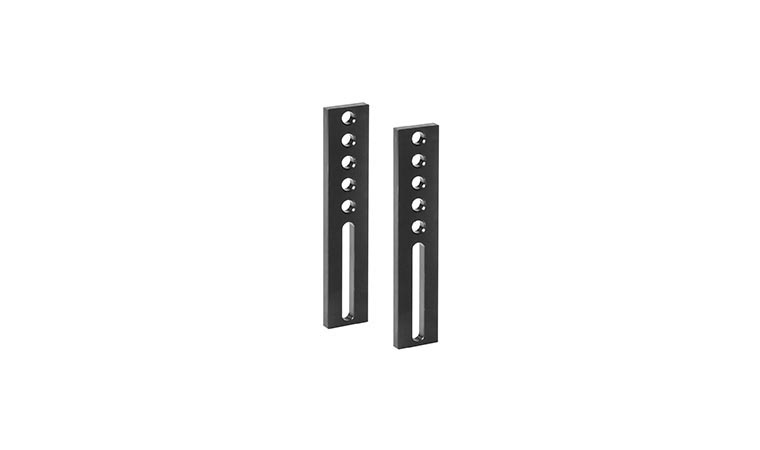

2

D22-05003-000

Stop strip L 500 500 × 100 × 25 mm

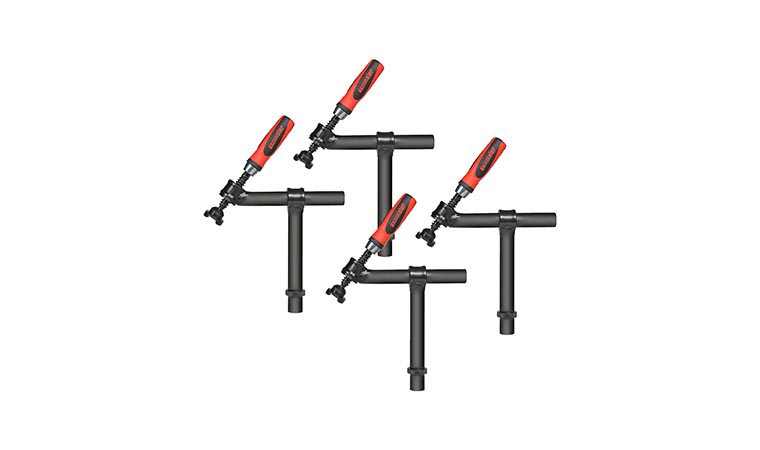

4

D22-07009-000

Variable screw clamp 45° with spindle vertical pipe 250 mm

4

D22-07005-000

Variable screw clamp 180° with spindle vertical pipe 250 mm

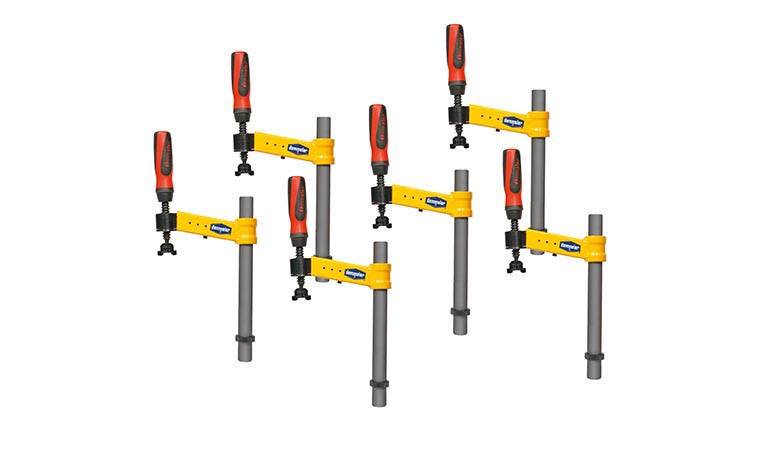

6

D22-07001-000

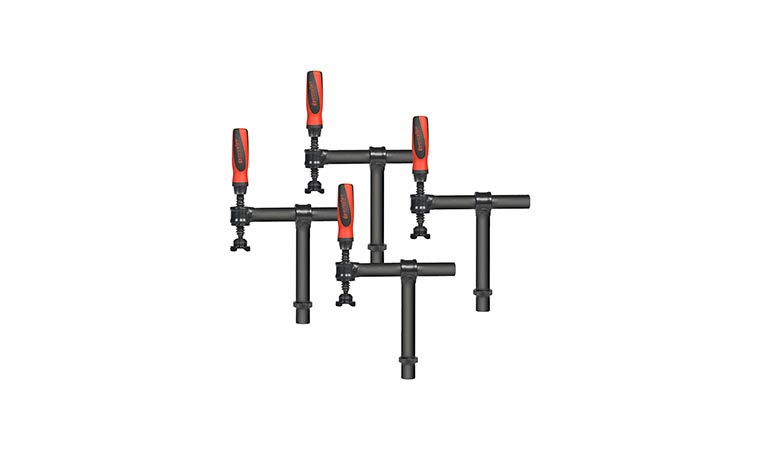

Compensating swing clamp 180°with spindle vertical pipe 300 mm

1

D22-10002-000

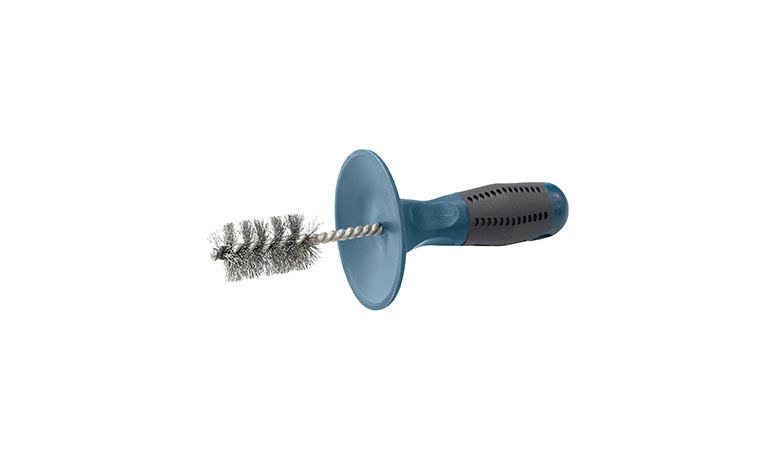

Round brush Ø 22, with protective cap,for cleaning the system bore

1

D22-10016-001

Extraction tool 250 × 40 mm, SW 10

1

D00-10007-000

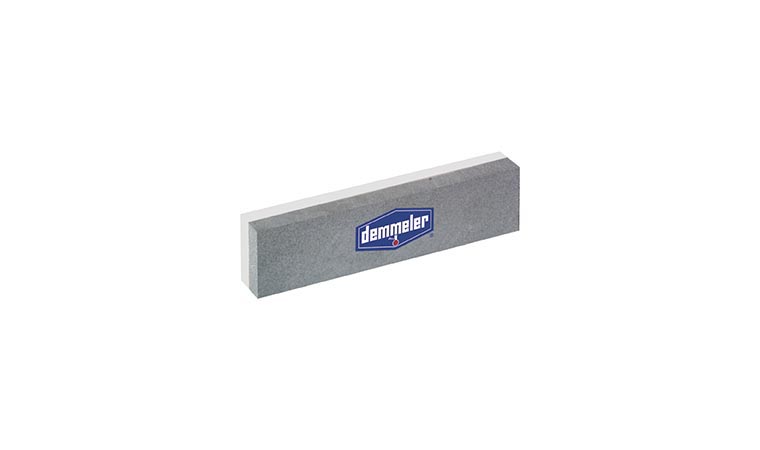

Bench stone 200 × 50 × 25 mm

1

PE22-03003-001

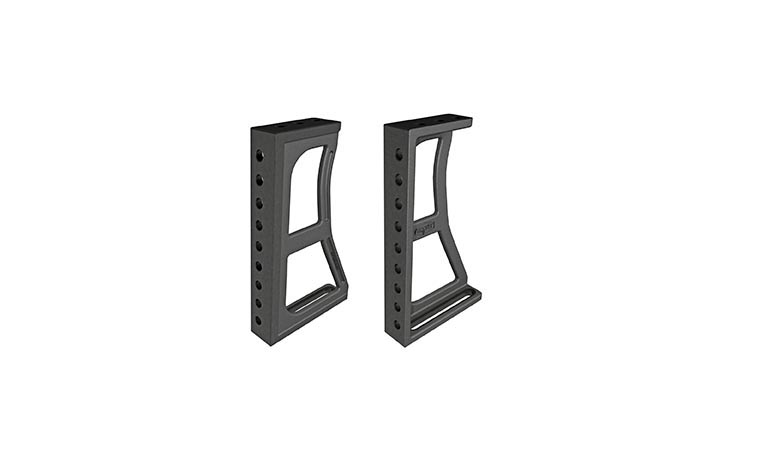

Clamping and locating angleH 500, DEMONT 760 M Black Edition, hardened casting, left

1

PE22-03003-000

Clamping and locating angleH 500, DEMONT 760 M Black Edition, hardened casting, right

1

PE22-03004-001

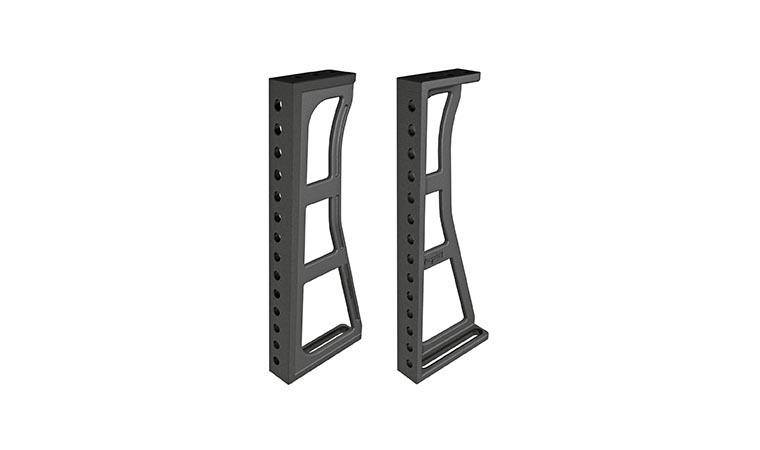

Clamping and locating angleH 750, DEMONT 760 M Black Edition, hardened casting, left

1

PE22-03004-000

Clamping and locating angleH 750, DEMONT 760 M Black Edition, hardened casting, right

You can individually assemble or supplement your sets with the large selection of Demmeler accessories!
