PROFIPlusLINE Set 731 (System 28) with PPC bolts

  • PROFIPlusLINE Set 731 (System 28) with PPC bolts
  • PROFIPlusLINE Set 731 (System 28) with PPC bolts
  • PROFIPlusLINE Set 731 (System 28) with PPC bolts
  • PROFIPlusLINE Set 731 (System 28) with PPC bolts
  • PROFIPlusLINE Set 731 (System 28) with PPC bolts
  • PROFIPlusLINE Set 731 (System 28) with PPC bolts
  • PROFIPlusLINE Set 731 (System 28) with PPC bolts
  • PROFIPlusLINE Set 731 (System 28) with PPC bolts
  • PROFIPlusLINE Set 731 (System 28) with PPC bolts
  • PROFIPlusLINE Set 731 (System 28) with PPC bolts
  • PROFIPlusLINE Set 731 (System 28) with PPC bolts
  • PROFIPlusLINE Set 731 (System 28) with PPC bolts
  • PROFIPlusLINE Set 731 (System 28) with PPC bolts
  • PROFIPlusLINE Set 731 (System 28) with PPC bolts
  • PROFIPlusLINE Set 731 (System 28) with PPC bolts
  • PROFIPlusLINE Set 731 (System 28) with PPC bolts
  • PROFIPlusLINE Set 731 (System 28) with PPC bolts
  • PROFIPlusLINE Set 731 (System 28) with PPC bolts
  • PROFIPlusLINE Set 731 (System 28) with PPC bolts
  • PROFIPlusLINE Set 731 (System 28) with PPC bolts
  • PROFIPlusLINE Set 731 (System 28) with PPC bolts
  • PROFIPlusLINE Set 731 (System 28) with PPC bolts
  • PROFIPlusLINE Set 731 (System 28) with PPC bolts
  • PROFIPlusLINE Set 731 (System 28) with PPC bolts
  • PROFIPlusLINE Set 731 (System 28) with PPC bolts
  • PROFIPlusLINE Set 731 (System 28) with PPC bolts
  • PROFIPlusLINE Set 731 (System 28) with PPC bolts
  • PROFIPlusLINE Set 731 (System 28) with PPC bolts
  • PROFIPlusLINE Set 731 (System 28) with PPC bolts
  • PROFIPlusLINE Set 731 (System 28) with PPC bolts
  • PROFIPlusLINE Set 731 (System 28) with PPC bolts
  • PROFIPlusLINE Set 731 (System 28) with PPC bolts
  • PROFIPlusLINE Set 731 (System 28) with PPC bolts
  • PROFIPlusLINE Set 731 (System 28) with PPC bolts
  • PROFIPlusLINE Set 731 (System 28) with PPC bolts
  • PROFIPlusLINE Set 731 (System 28) with PPC bolts
  • PROFIPlusLINE Set 731 (System 28) with PPC bolts
  • PROFIPlusLINE Set 731 (System 28) with PPC bolts
  • PROFIPlusLINE Set 731 (System 28) with PPC bolts
  • PROFIPlusLINE Set 731 (System 28) with PPC bolts
  • PROFIPlusLINE Set 731 (System 28) with PPC bolts
  • PROFIPlusLINE Set 731 (System 28) with PPC bolts
  • PROFIPlusLINE Set 731 (System 28) with PPC bolts
  • PROFIPlusLINE Set 731 (System 28) with PPC bolts
  • PROFIPlusLINE Set 731 (System 28) with PPC bolts
  • PROFIPlusLINE Set 731 (System 28) with PPC bolts
  • PROFIPlusLINE Set 731 (System 28) with PPC bolts
  • PROFIPlusLINE Set 731 (System 28) with PPC bolts
  • PROFIPlusLINE Set 731 (System 28) with PPC bolts
  • PROFIPlusLINE Set 731 (System 28) with PPC bolts
  • PROFIPlusLINE Set 731 (System 28) with PPC bolts
  • PROFIPlusLINE Set 731 (System 28) with PPC bolts
  • PROFIPlusLINE Set 731 (System 28) with PPC bolts
  • PROFIPlusLINE Set 731 (System 28) with PPC bolts
  • PROFIPlusLINE Set 731 (System 28) with PPC bolts
  • PROFIPlusLINE Set 731 (System 28) with PPC bolts
  • PROFIPlusLINE Set 731 (System 28) with PPC bolts
  • PROFIPlusLINE Set 731 (System 28) with PPC bolts
  • PROFIPlusLINE Set 731 (System 28) with PPC bolts
  • PROFIPlusLINE Set 731 (System 28) with PPC bolts
price on request

plus VAT

Amount:

Item number: D28-52000-731

Product description

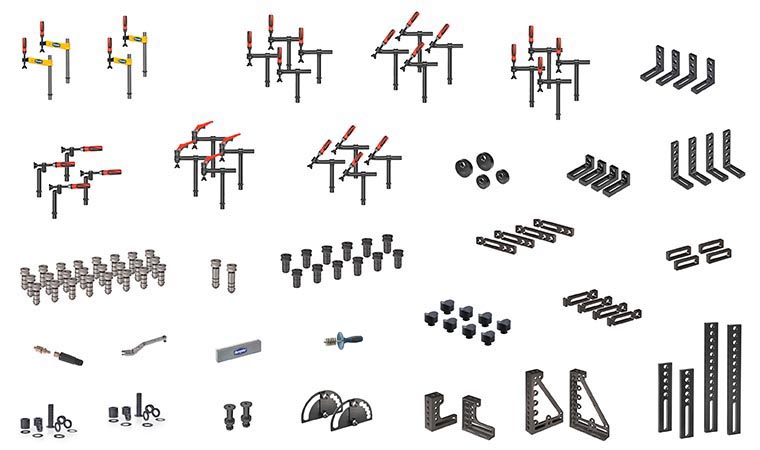

Parts 120

Quantity

Article no.

Article designation

4

PE28-03001-000

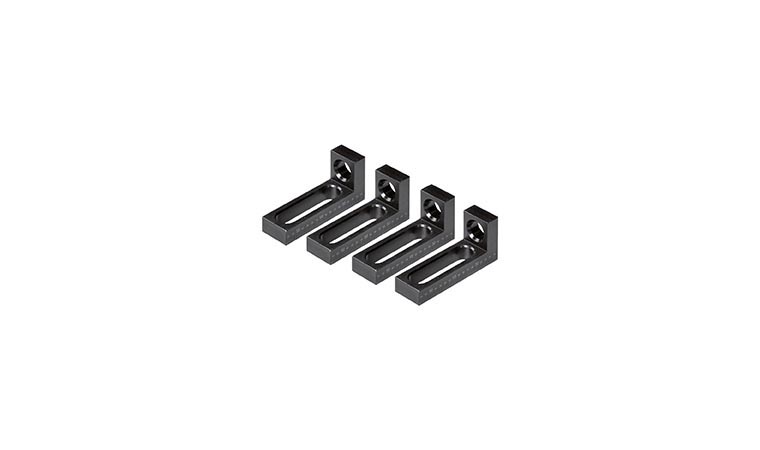

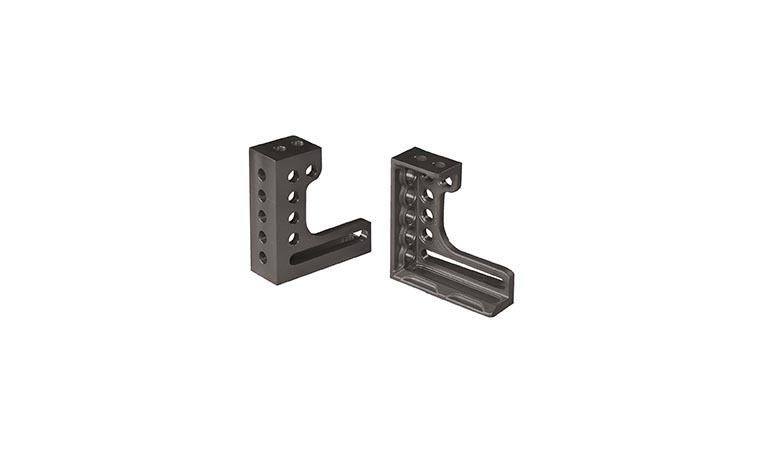

Clamping and locating angle 175x175x50 mm

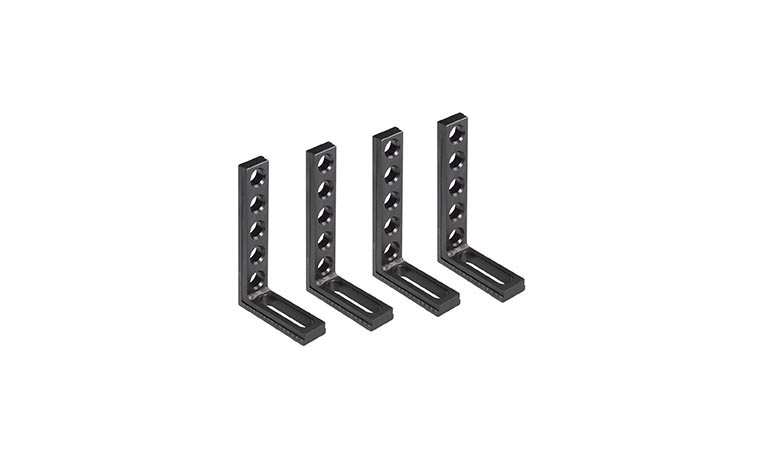

4

D28-03001-005

Clamping and locating angle / small 175x75x50 mm, scale on both sides

1

PL28-03002-000

Clamping and locating angle, right 300x275 mm

1

PL28-03002-001

Clamping and locating angle, left 300x275 mm

1

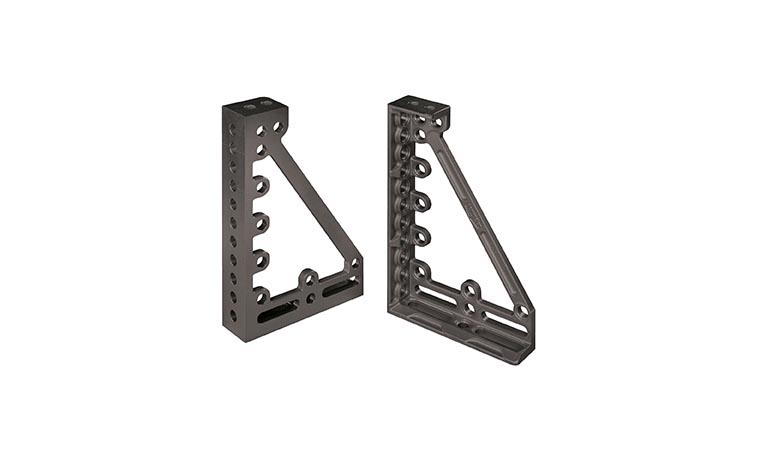

PL28-03003-000

Clamping and locating angle, right 600x375 mm

1

PL28-03003-001

Clamping and locating angle, left 600x375 mm

4

PE28-03008-000

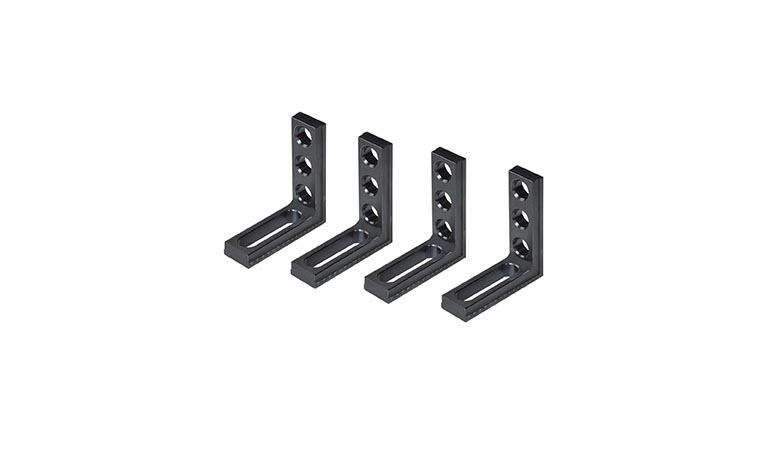

Clamping and locating angle 275x175x50 mm

4

D28-05001-000

Universal stop / large 225x50x25 mm

2

D28-05003-000

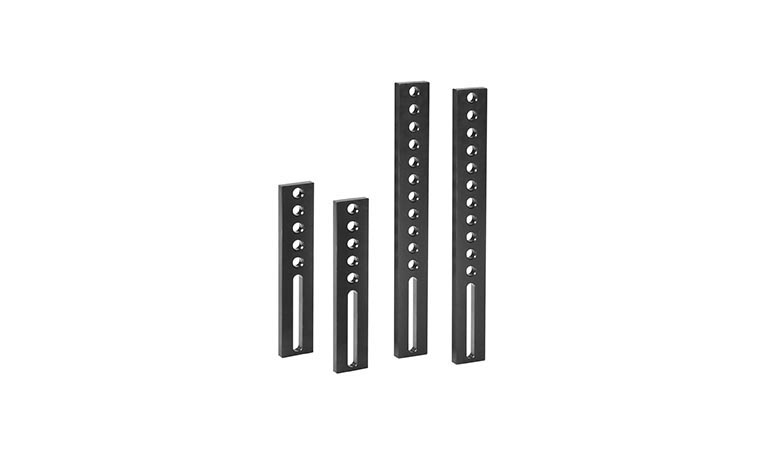

Stop-strip L 500 - 500x100x25 mm

2

D28-05003-001

Stop-strip L 800 - 800x100x25 mm

4

D28-05009-000

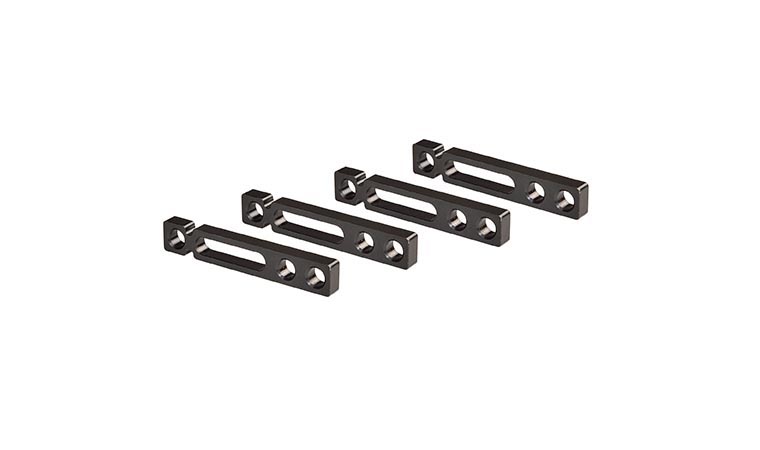

Universal stop L 300 - 300x50x25 mm

2

D28-05013-000

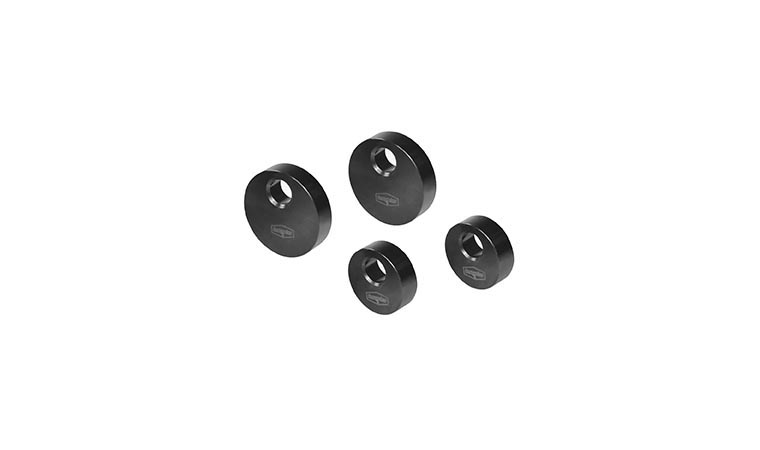

Locating disk Ø 75 - stop dimension 25-50 mm, continuous

2

D28-05013-001

Locating disk Ø 100 - stop dimension 25-75 mm, continuous

2

D28-05013-010

Angle-setting template, scale on both sides, 0 - 90°, 15°, 30°, 45°, 60°

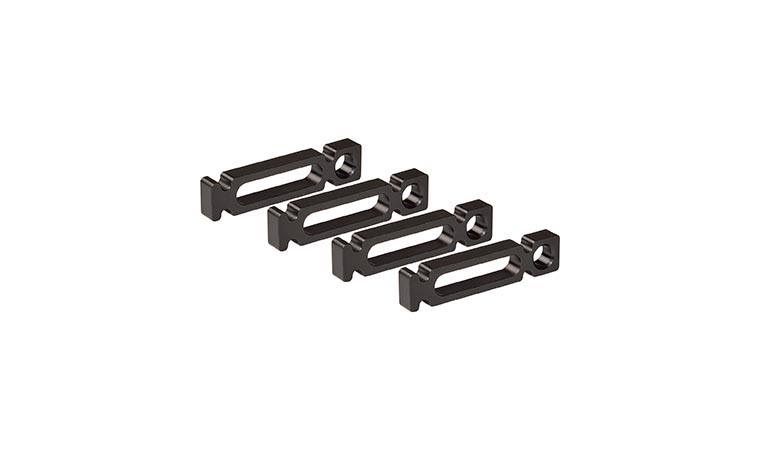

4

D28-05015-000

Displacement stop - 150x50x25 mm, scale on both sides

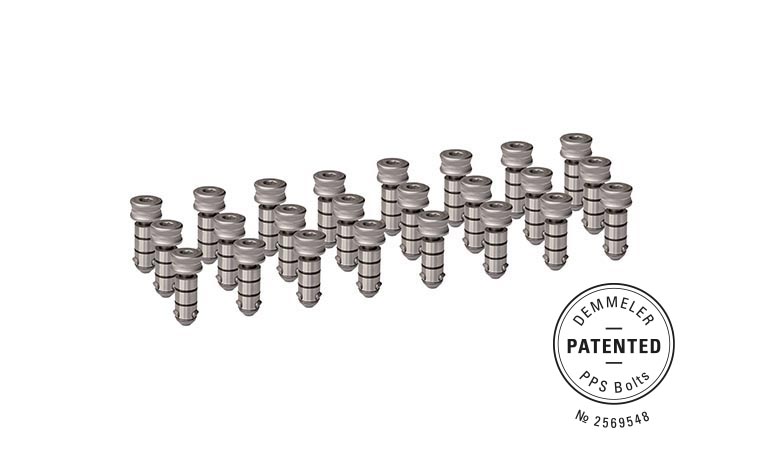

24

D28-06025-000

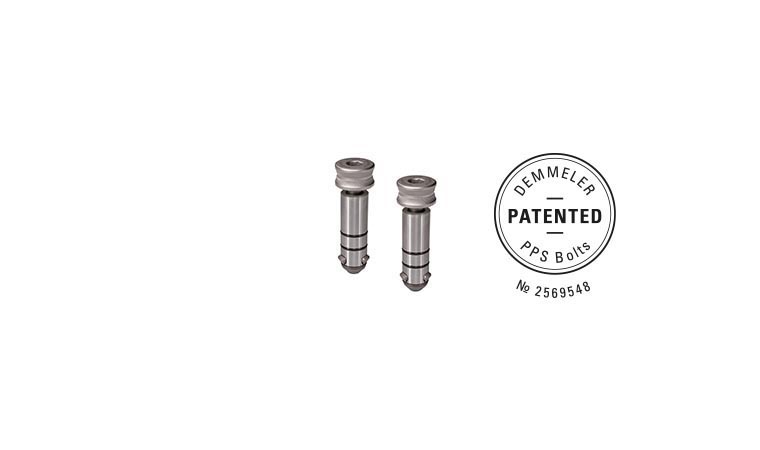

PPC-bolts / short - Ø 28-0.02, AF 14, full surface support for optimum force transmission

2

D28-06026-000

PPC-bolts / long - Ø 28-0.02, AF 14, full surface support for optimum force transmission

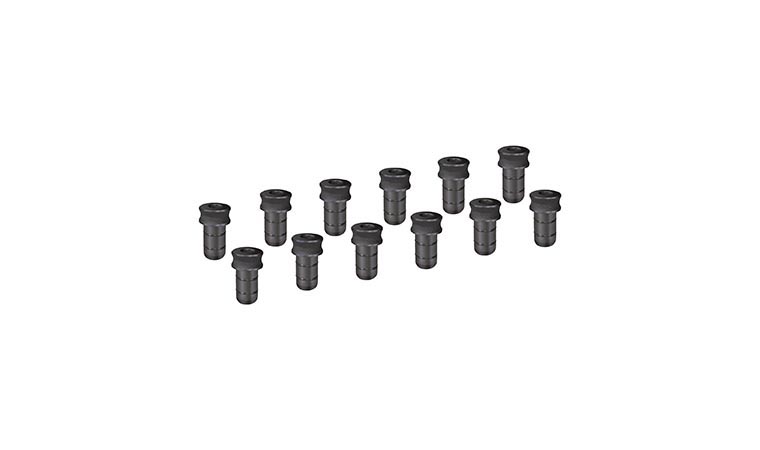

12

D28-06009-000

Stop and positioning bolt Ø 28 / 40x74 mm

2

D28-07001-000

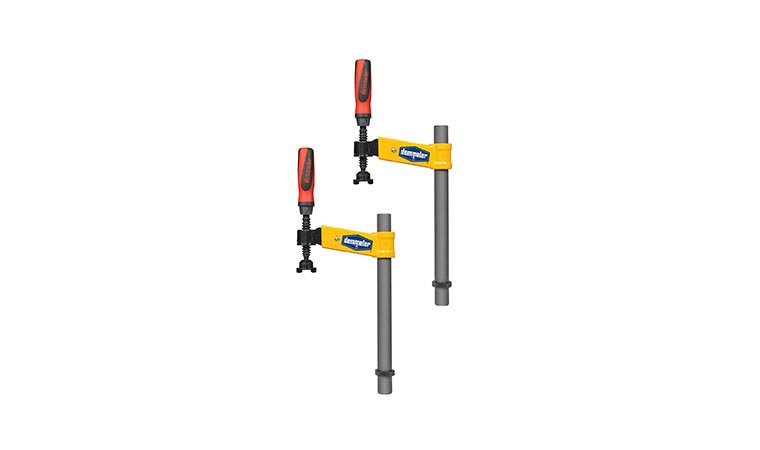

Compensating swing clamp 150 mm with spindle

2

D28-07002-000

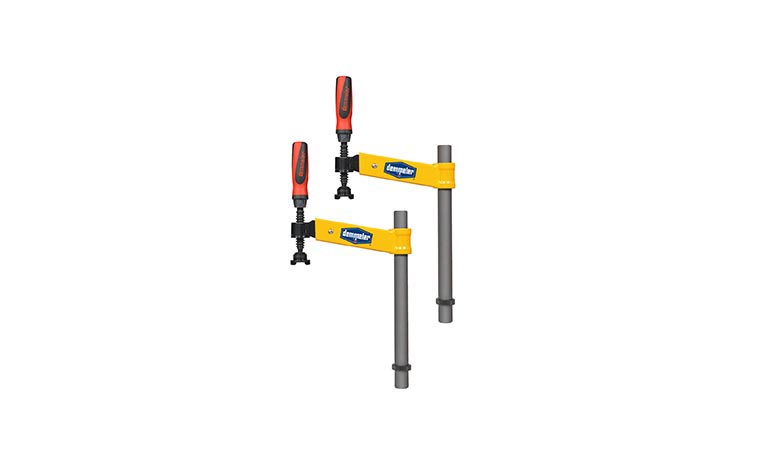

Compensating swing clamp 200 mm with spindle

4

D28-07005-000

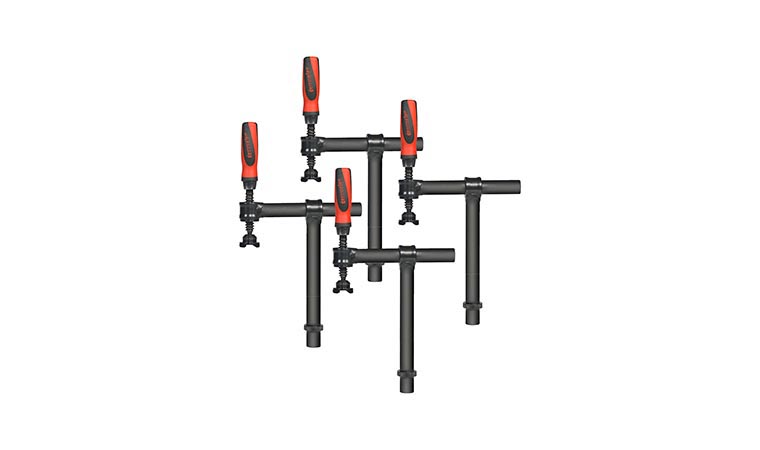

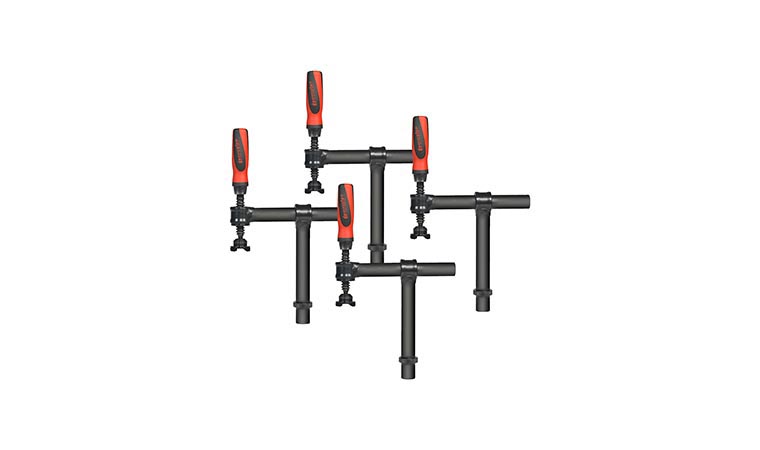

Screw clamp 180° with spindle - vertical tube 220 mm

4

D28-07005-014

Screw clamp 180° with spindle - vertical tube 350 mm

4

D28-07005-015

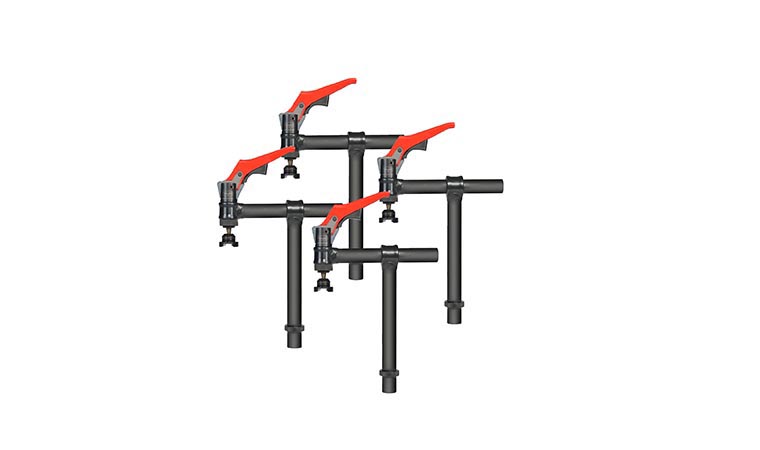

Screw clamp 180° with quick-action clamping cylinder - vertical tube 350 mm

4

D28-07008-000

Swing clamp 90° - vertical tube 260 mm

4

D28-07009-000

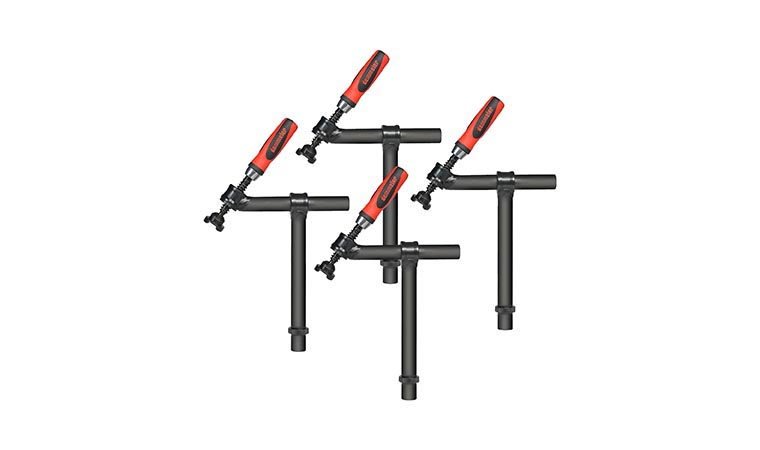

Swing clamp 45° with adjusting screw - vertical tube 220 mm

4

D28-07009-011

Swing clamp 45° with adjusting screw - vertical tube 350 mm

2

D28-09001-000

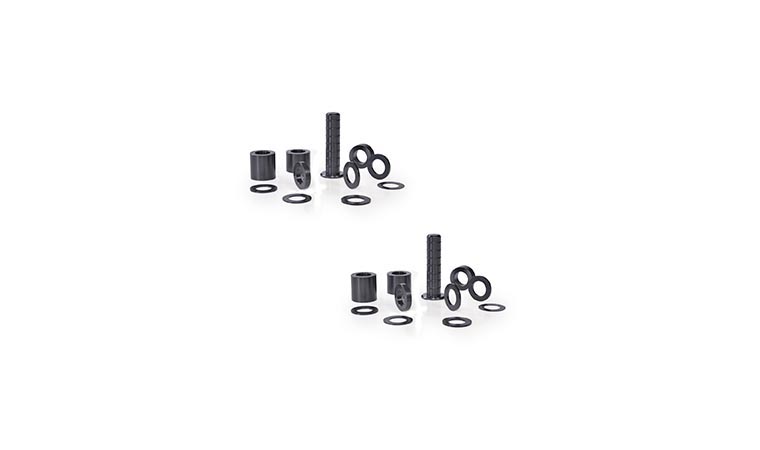

Spacer set 11 pieces - Ø 50x125 mm

2

D28-09001-005

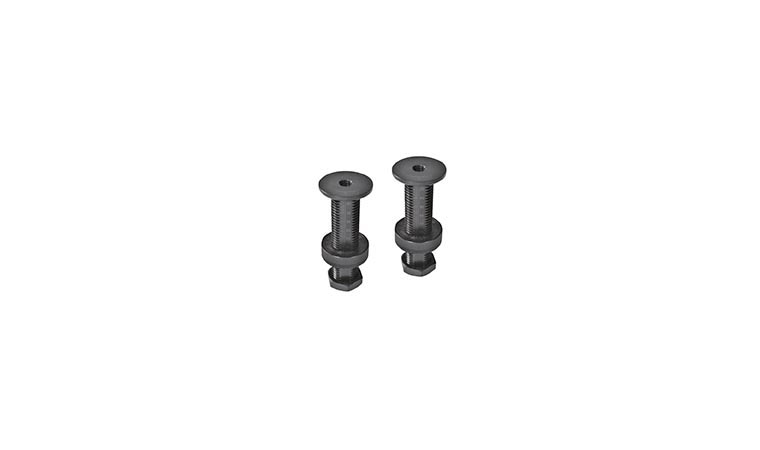

Spacer set with thread - Ø 50x125 mm

8

D28-09003-000

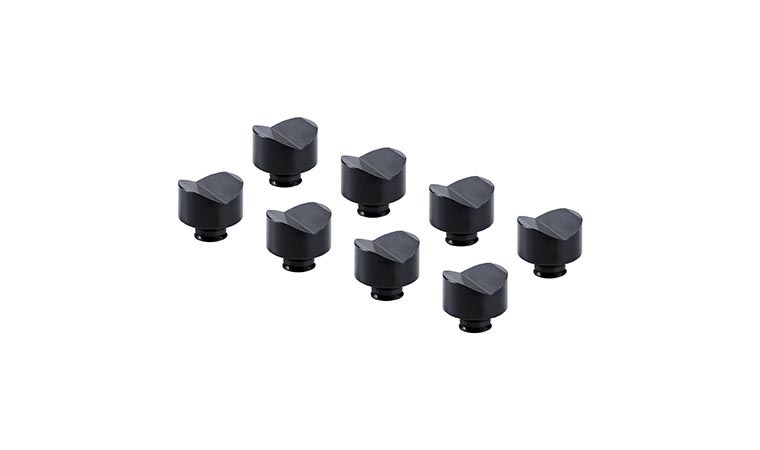

V-block locations blackened steel, Ø 58 mm - 130° - for tubes up to Ø 70 mm

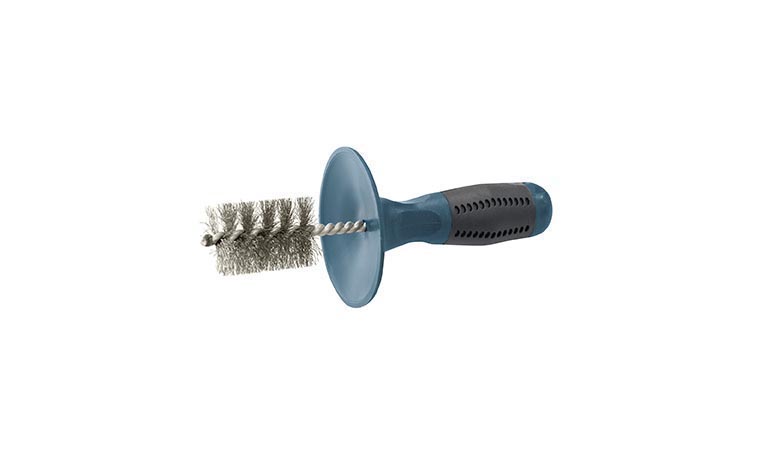

1

D28-10002-000

Round brush Ø 28x260 mm

1

D00-10007-000

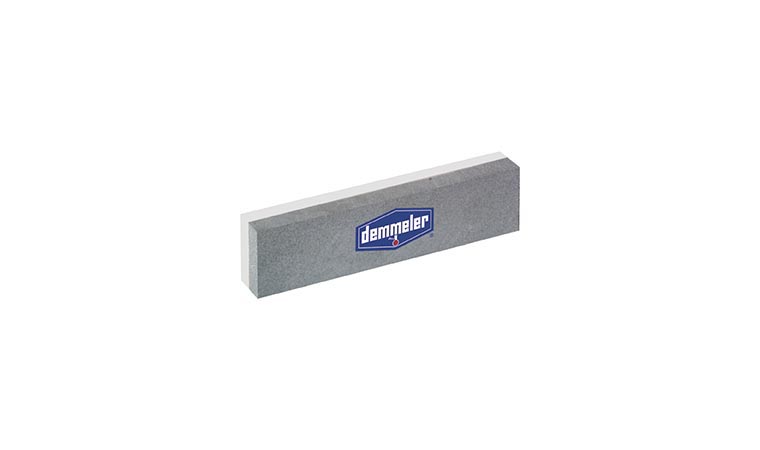

Bench stone 200x50x25 mm

1

D00-10009-000

Ground connector D16/D28 - for cable 50-70 mm², load up to 500 A

1

D00-10016-001

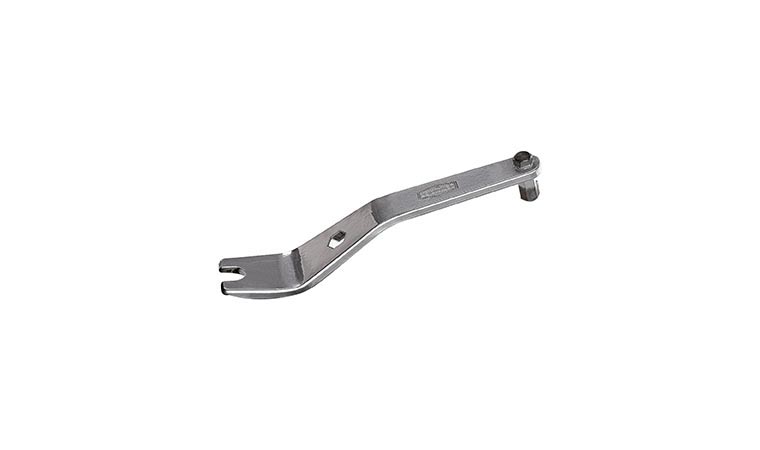

Extraction tool - 250x40 mm, AF 14

You can individually assemble or supplement your sets with the large selection of Demmeler accessories!
