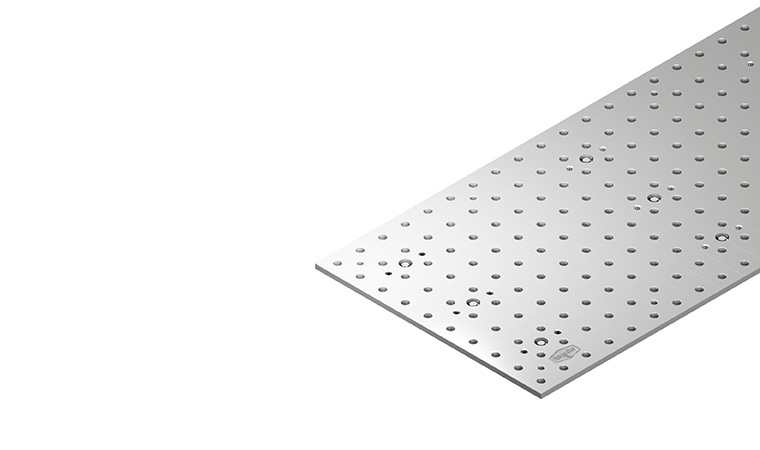

Clamping floor plate 1000 x 1000 mm

  • Clamping floor plate 1000 x 1000 mm
  • Clamping floor plate 1000 x 1000 mm
  • Clamping floor plate 1000 x 1000 mm
  • Clamping floor plate 1000 x 1000 mm
  • Clamping floor plate 1000 x 1000 mm
  • Clamping floor plate 1000 x 1000 mm

Product description

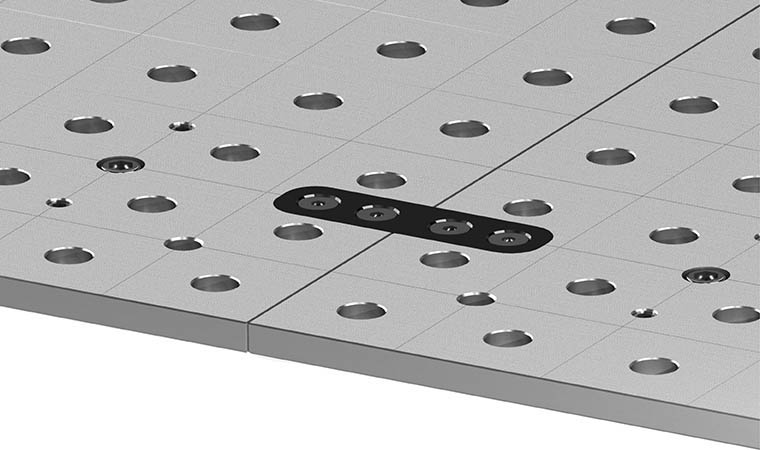

  • A modular system grid can be set up over large distances
  • Precise reference plane and clamping surfaces over the entire work area
  • Precise positioning thanks to D28 bores in a 100 mm grid
  • Suitable for all standard applications

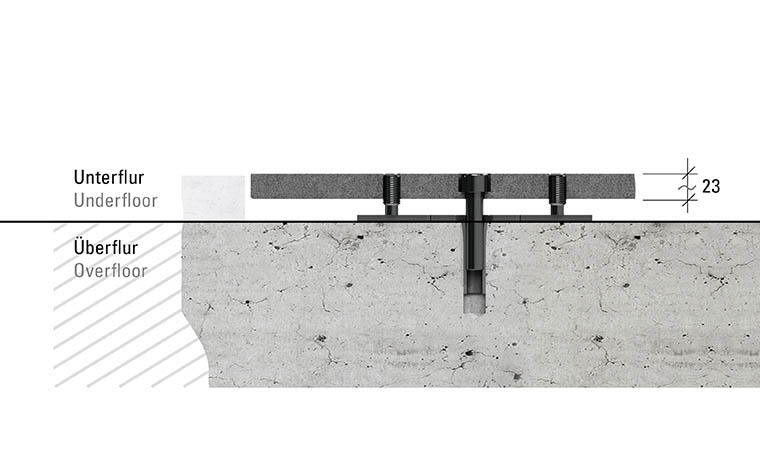

  • Screw set, dowels and shims are included in the scope of delivery
  • Bearing load per metre up to 16 t/bearing load approx. 5 t per m2
  • Permissible tensile load in crack-free concrete 1.0 t per dowel
price on request

plus VAT

Size:

Amount:

Item number: D28-02010-000

Technical data


L in mm 1000
W in mm 1000
H in mm 23

Download
CAD-Files
