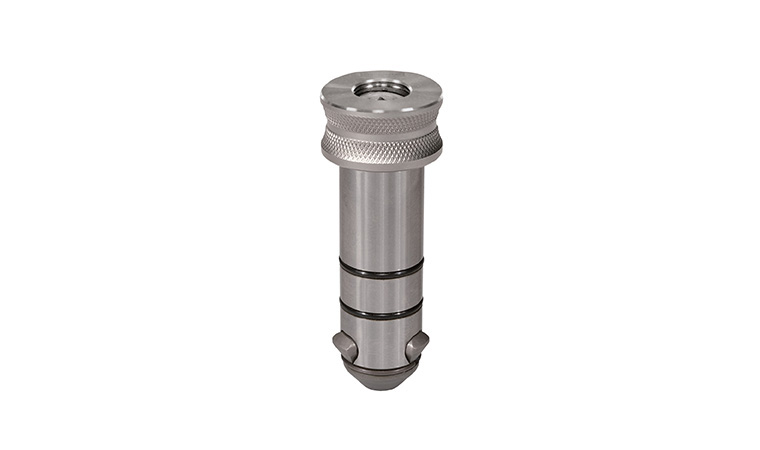

EcoLINE bolt - long

  • EcoLINE bolt - long
  • EcoLINE bolt - long

Product description


  • Connecting element for system components
  • For clamping one system component onto the welding table or for connecting 2 system components
  • Simple version without expanded clamping range
Do not exceed the specified loads when using the clamping pins.
Avoid the induction of welding voltages, unfavourable leverage ratios and impacts during use.
price on request

plus VAT

System:

Amount:

Item number: E22-06026-000

Technical data


Diameter A in mm 22
B in mm 31
Clamping range 50-51,5
Tensile force in kN 18
Shear force in kN 100
Tightening torque in Nm 15
Approx. weight in kg 0,3
