PROFIPlusLINE (PL) 3D table 16

  • <b>PROFI</b>Plus<b>LINE (PL) 3D table 16</b>
  • <b>PROFI</b>Plus<b>LINE (PL) 3D table 16</b>
  • <b>PROFI</b>Plus<b>LINE (PL) 3D table 16</b>
  • <b>PROFI</b>Plus<b>LINE (PL) 3D table 16</b>
  • <b>PROFI</b>Plus<b>LINE (PL) 3D table 16</b>
  • <b>PROFI</b>Plus<b>LINE (PL) 3D table 16</b>
  • <b>PROFI</b>Plus<b>LINE (PL) 3D table 16</b>
  • <b>PROFI</b>Plus<b>LINE (PL) 3D table 16</b>

Product description

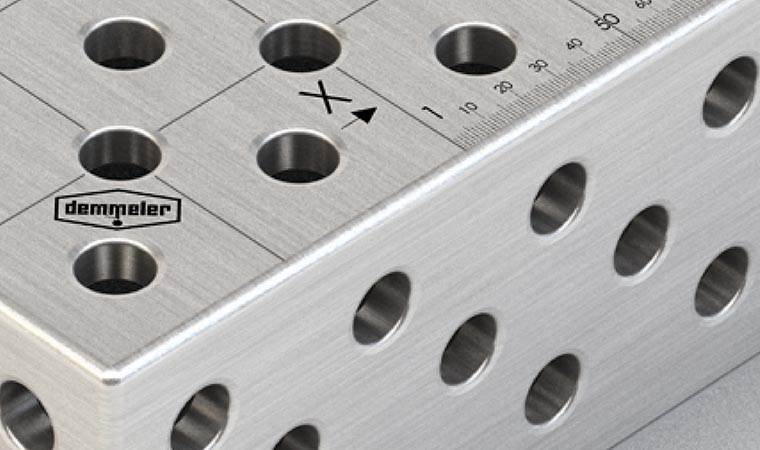

  • Worktop with D16 system bores in a double 50 mm x 50 mm grid, resulting in approx. 80 % more clamping options than PROFIEcoLINE and conventional worktables
  • 3-row bore pattern on the table side plates with D16 system bores, 50 mm grid in the top, middle and bottom row
  • All table sizes optionally available in new hardness, DEMONT 760 M in up to 760 Vickers
  • All system bores with new protective countersink, perfect design and ultimate functionality
  • Optimised outside table edges
  • Continuous gridlines in X and Y-direction, 50 mm spacing
  • Precision scaling with millimetre division, also available with the DEMONT 760 M option
  • Coordinate marking of the bores in the X and Y-direction
  • DEMMELER logo recessed in all 4 side plates
  • Table legs with fine adjustment, round design with pivoting foot
  • Foot sleeve to protect the cable-hose assembly
price on request

plus VAT

Table size:
Point rating DEMONT 860 M DEMONT 760 M Standard
Hardness 10 8 5
Point load 9 8 5
Scratch-resistant 10 8 5
Corrosion-resistance 8 8 4
Against weld spatter 9 9 7
Accuracy 7 8 10
Service life 10 8 6
70 Points Maximum 63 Points 57 Points 42 Points

Your table leg:

Standard leg

Standard leg

Telescoping leg

Telescoping leg

Heavy-duty wheel

Heavy-duty wheel

Anchoring leg

Anchoring leg

Tischplatte ohne Fuß

Table top without leg


Item number table: PL16-01000-001
Item number table leg:
Amount: 4 pieces

Technical data

L in mm 1000
W in mm 500
H in mm 850 ±30
weight in kg 104
Your table leg Standard leg
hardness Standard

Benefits of the DEMMELER welding tables

Max. load

All our welding tables are generously sized, super sturdy and optimised with FEM calculations on principle.

Precision scaling

Axis designation in x and y-direction. Standard version includes precision scaling.

Protective countersinks

Optimum bolt and clamp insertion with simultaneous protection of the tabletop against damage from materials, even in case of extreme strain on the system bore or when used with aluminium.

Additional bores

Additional bores in the side stanchion for even more clamping options.

Leg with sleeve

The foot sleeve prevents pinching and reduces wear at the cable-hose assembly. This also provides a convenient way of using the ground connector. It also protects the threaded spindle against dirt and wear. Fine adjustments are possible and fixing is stable and simple.

Fitting accessories
