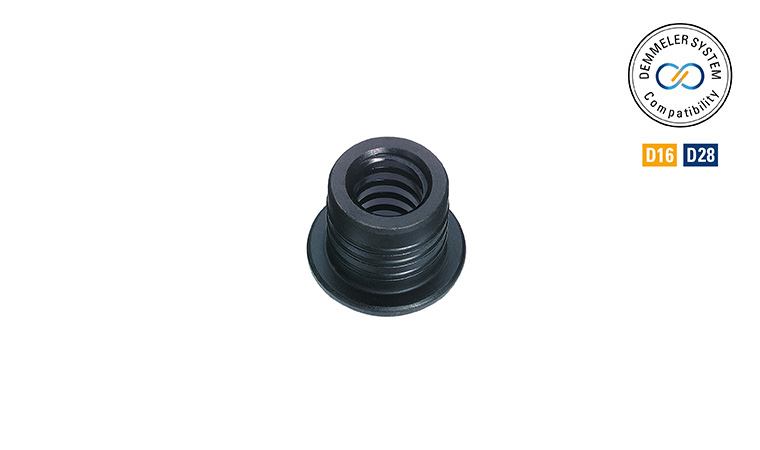

Reduction Bushing D16 to D28
Product description

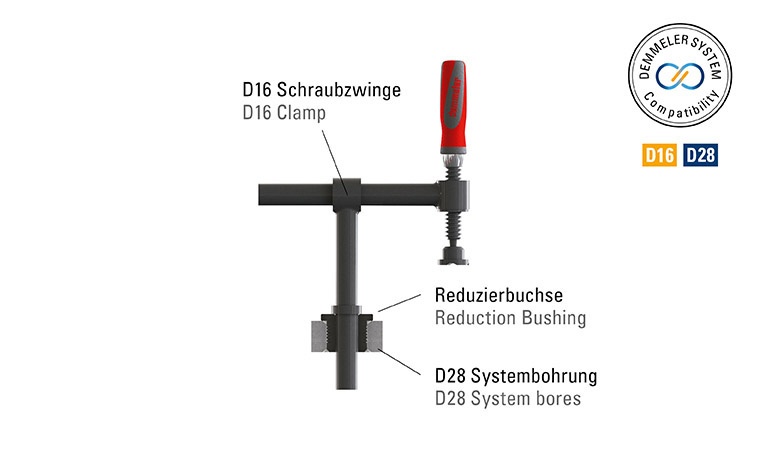

- Used to hold Ø 16 mm screw clamps in D28 system bores
- D16 quick-action clamping cylinder can be used in system D28
- Can be used as support or stop simultaneously
- Threaded bushing for D28 screw clamp
Note: If bolts are used then long D16 bolts are required
price on request
plus VAT
Technical data
| A in mm | 30 |
|---|---|
| B in mm | 28 |
| C in mm | 16 |
| weight in kg | 0,10 |
DownloadCAD-Files
