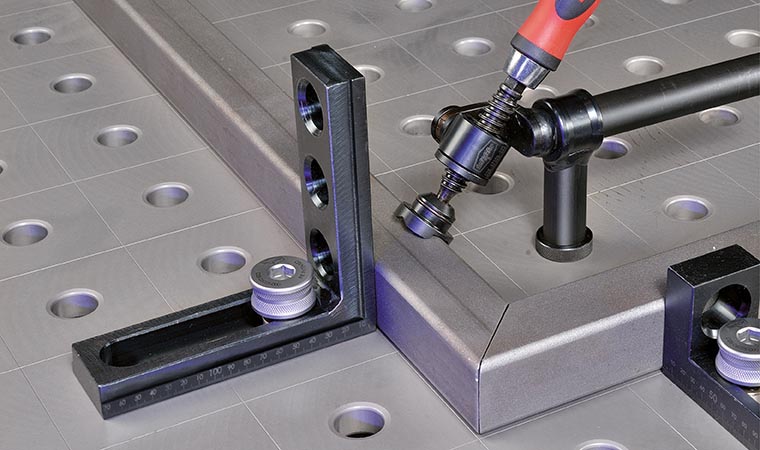

Clamping and locating angle bore/oblong hole
Product description
- Combination of system bores / oblong hole and therefore many clamping possibilities
- Steel, hardened
- Two full angle surfaces, therefore can be used from both sides
- Dimension adjustment possible using grid lines on 3D welding table
- Compatible with all clamping and locating angles so that the oblong hole can be used to form a height-adjustable support
- Precision scaling on both sides
price on request
plus VAT
Technical data
| A in mm | 175 |
|---|---|
| B in mm | 175 |
| C | 50 |
| weight in kg | 1,7 |
| D in mm | 18 |
| Designation | Steel, hardened |
DownloadCAD-Files
