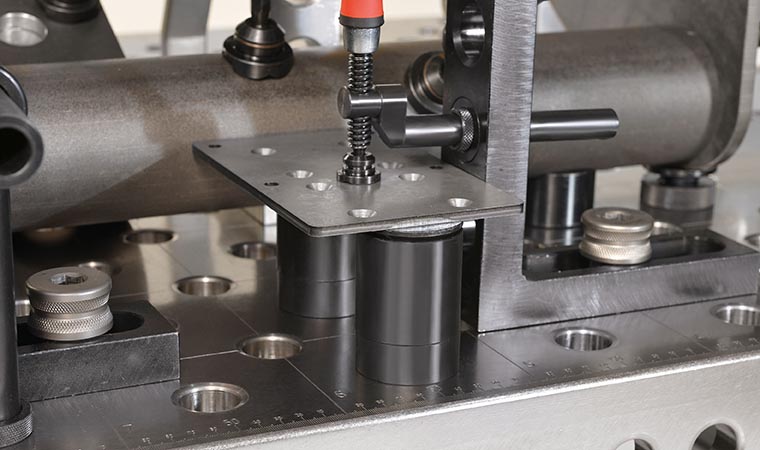

Spacer set D28, 11-pieces

For 5-100 mm height compensation on the respective supporting surface
Smallest increment 1mm
Includes 1/10 inch disk (2.54 mm)
With dimensions of the compensating disks

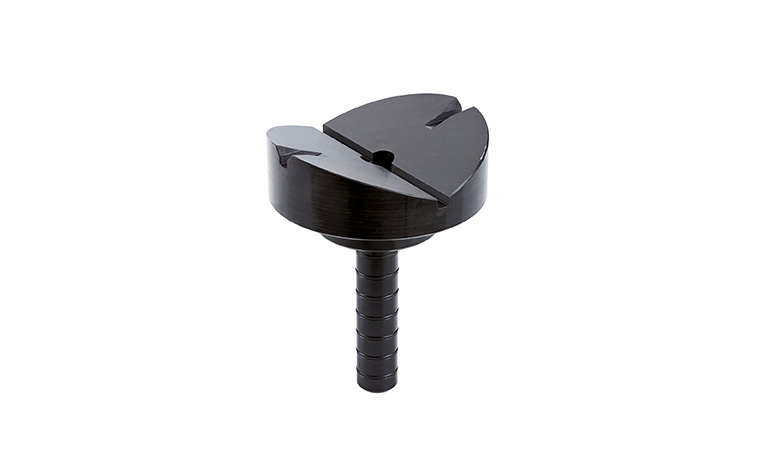

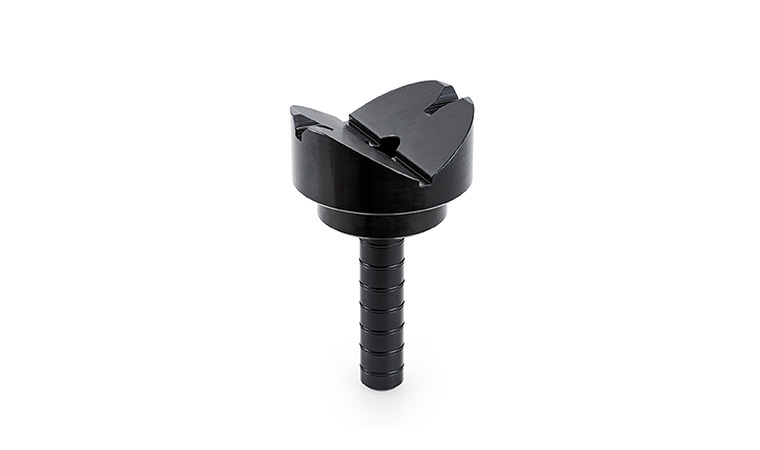

Support mandrel fitting each system bore 28
Self-locking with O-Ring
On the top of the support mandrel M12 thread for customer-specific elements available on request
Exact positioning of height via bearer sleeves in various lengths
11-pieces: support mandrel, bearer sleeve L1, L2, L2.5 (1/10 inch disk), L3, L4, L5, L10, L20, L40, L50
