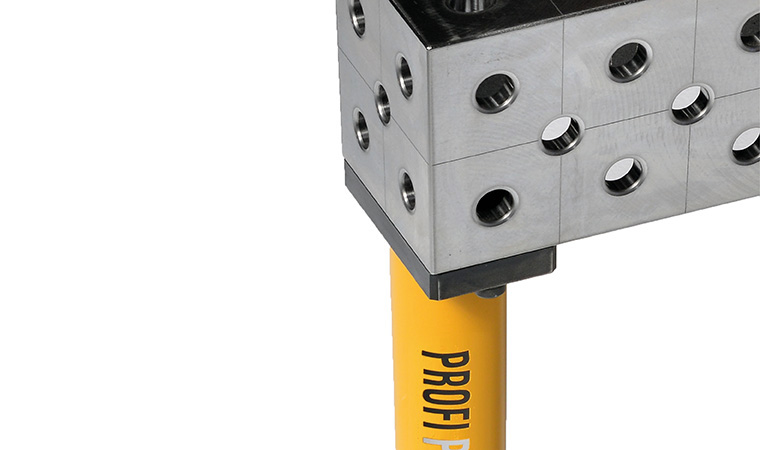

Mounting plate for spacer block U-form
Product description
- Mounting plate for spacer block U-form D28-04002-xxx
- For supporting leg attachment PL28-10010-xxx from 1 m length
- incl. 2x fitted shoulder screws M12-16 H8x30
- 2x fitted bores for fitted shoulder screws
- Bore for supporting leg PL28-10010-xxx
- Other bores are D28 system bores
price on request
plus VAT
Technical data
| A in mm | 200 |
|---|---|
| B in mm | 100 |
| C in mm | 25 |
| weight in kg | 3.6 |
DownloadCAD-Files
