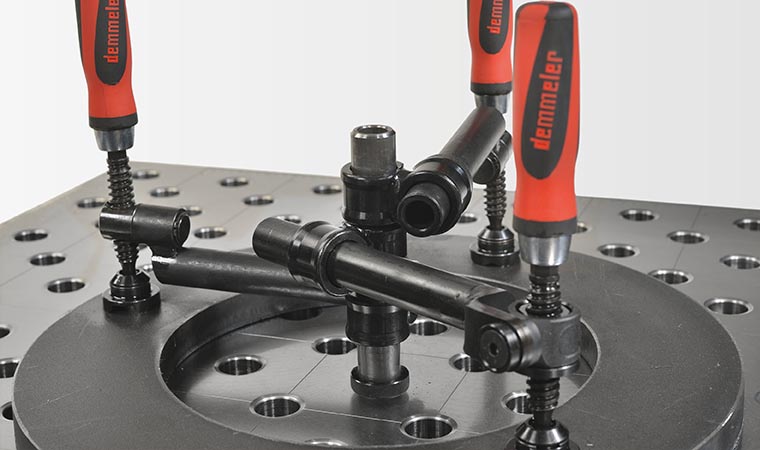

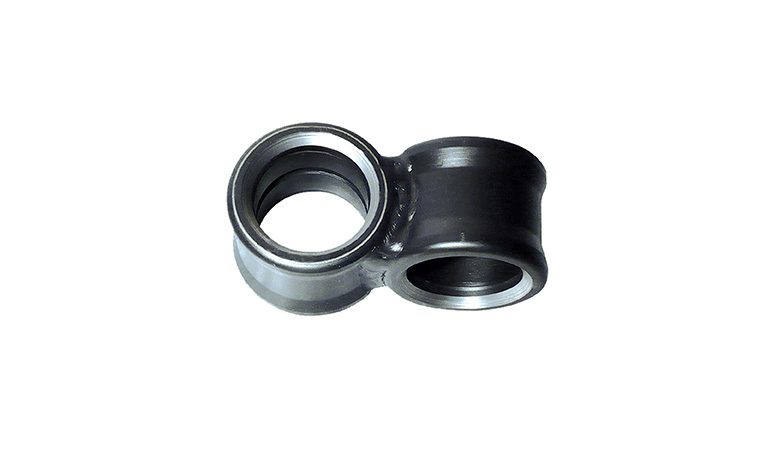

Angle bushing 90° with precision scaling in 15° increments
Product description
- User-friendly 360° precision scaling
- Especially handy in combination with toggle clamps
- Can also be used in combination with short or normal spindle with threaded bushing
- Axis distance 50 mm
price on request
plus VAT
Technical data
A in mm | 38 |
---|---|
B in mm | 28 |
weight in kg | 0,31 |
Download
CAD-Files
CAD-Files
